产品介绍

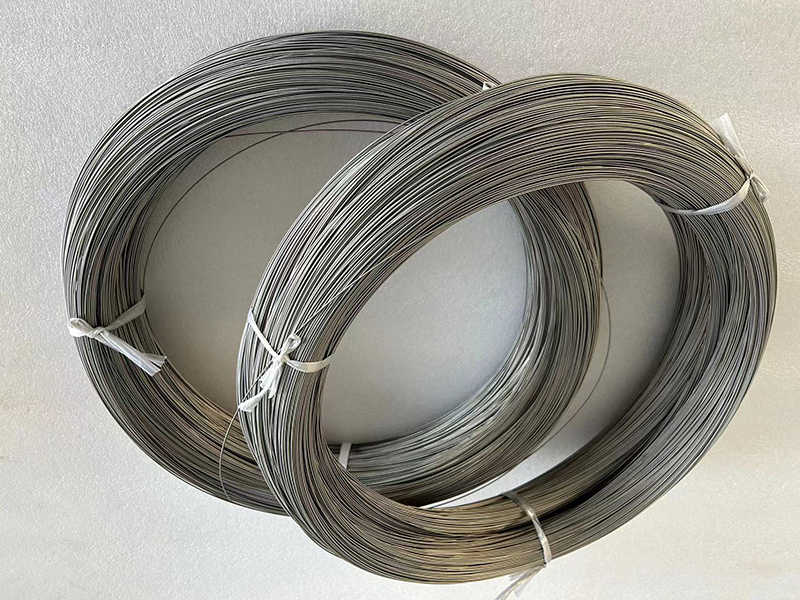

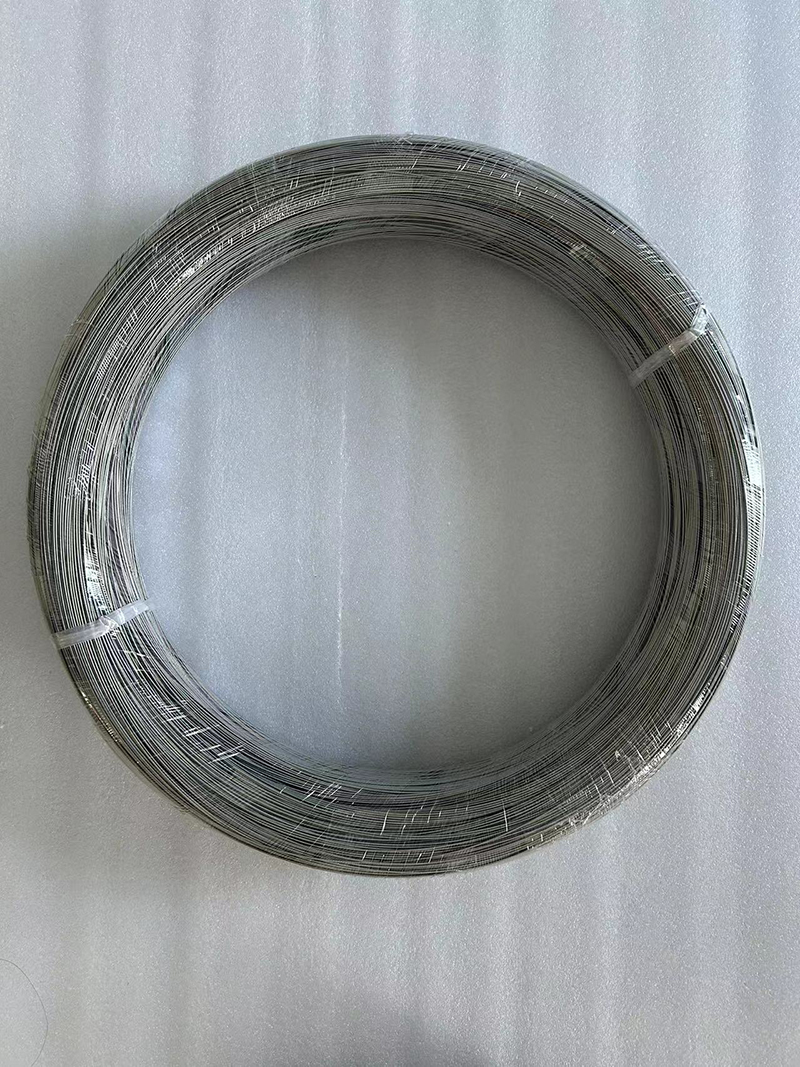

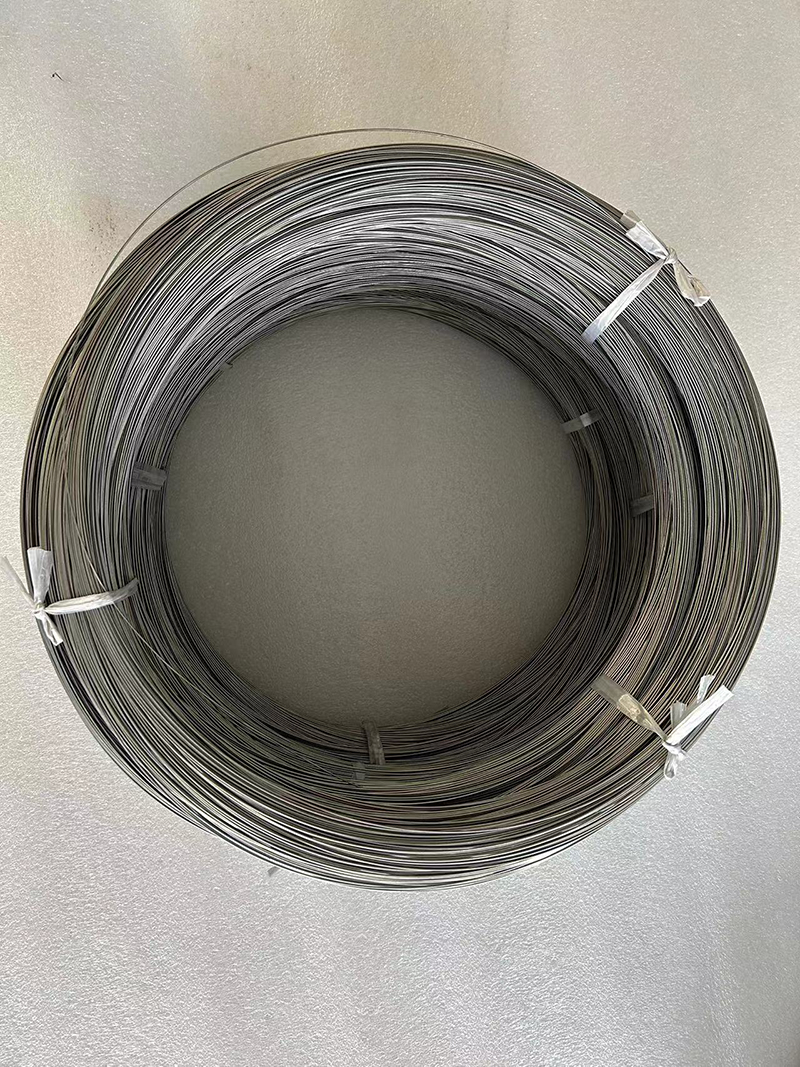

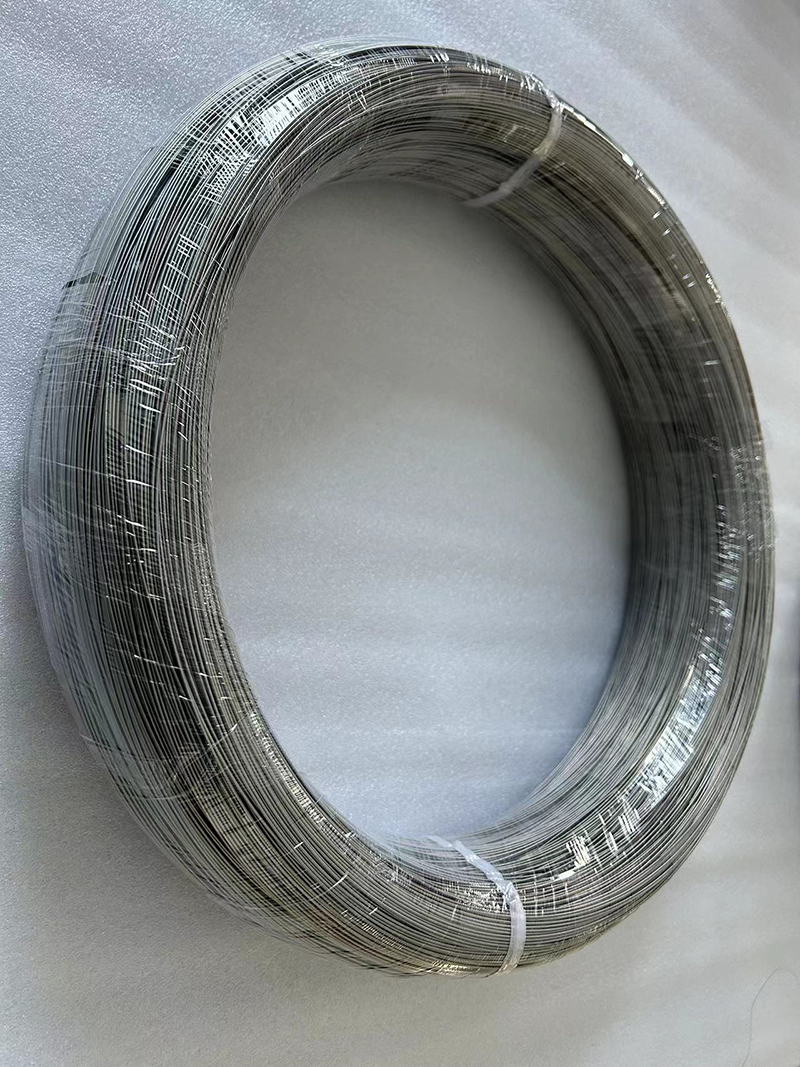

医用钛棒、钛丝
标准：ASTMF67，ASTMF136.ASTMB348.ISO5832-2;ISO5832-3
材质：TA1，TA2，TA3，TC4，TC4ELI;GR1，GR2，GR4，GR4，GR5，GR5ELI.
规格：Dia8~30mm*(2000~3000)mm
规格：Dia0.8~8mm*(1000~3000)mm
公差：h6~h9
可根据客户具体规格加工生产
化学成分：
|
Grade |
Ti |
Chemical composition |
|||||||||
|
Major composition |
residual elements，(not more than) |
||||||||||
|
Al |
V |
Sn |
Mo |
Pa |
Fe |
C |
N |
H |
O |
||
|
Gr1ELI |
Bal |
/ |
/ |
/ |
/ |
/ |
0.10 |
0.03 |
0.012 |
0.008 |
0.10 |
|
Gr1 |
Bal |
/ |
/ |
/ |
/ |
/ |
0.20 |
0.08 |
0.03 |
0.015 |
0.18 |
|
Gr2 |
Bal |
/ |
/ |
/ |
/ |
/ |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
|
Gr3 |
Bal |
/ |
/ |
/ |
/ |
/ |
0.30 |
0.08 |
0.05 |
0.015 |
0.35 |
|
Gr4 |
Bal |
/ |
/ |
/ |
/ |
/ |
0.50 |
0.08 |
0.05 |
0.015 |
0.40 |
|
Gr5 |
Bal |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
0.30 |
0.08 |
0.05 |
0.015 |
0.20 |
|
Gr5ELI |
Bal |
5.5~6.5 |
3.5~4.5 |
/ |
/ |
/ |
0.25 |
0.08 |
0.03 |
0.0120 |
0.13 |
相关物理性能：
|
Grade |
Condition |
Mechanical properties |
|||
|
Diameter mm |
Tensile strength Rm/Mpa |
Yield strength Rp0.2/Mpa |
Elongation A% |
||
|
Gr1ELI |
M
|
>7~90 |
>=200 |
>=140 |
>=30 |
|
Gr1 |
>=240 |
>170 |
>=24 |
||
|
Gr2 |
>=400 |
>=275 |
>=20 |
||
|
Gr3 |
>=500 |
>=380 |
>=18 |
||
|
Gr5 |
>7~50 |
>=930 |
>=860 |
>=10 |
|
|
>50~90 |
>=895 |
>=830 |
>=10 |
||
|
Gr5ELI |
>7~45 |
>=860 |
>=795 |
>=10 |
|
|
>45~65 |
>=825 |
>=760 |
>=8 |
||
|
>65~90 |
>=825 |
>=760 |
>=8 |
||
产品特性：低密度、重量轻、强度高、亦有良好的抗腐蚀能力医用钛棒(图)，耐高温、耐低温、抗强酸、抗强碱等
